IoT Architecture

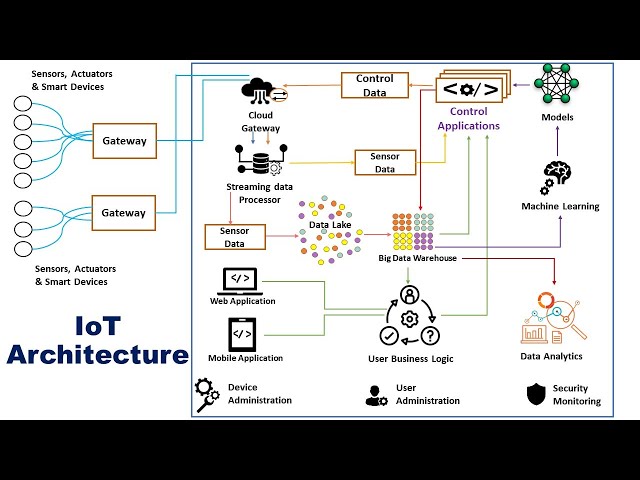

Main ideas and concepts in the video (IoT end-to-end architecture)

The lecture explains the full flow of an end-to-end IoT architecture, moving through these stages:

1. Things (sensing and acting)
2. Gateways (field-side connectivity + preprocessing)
3. Cloud gateway (secure communication + protocol handling)
4. Streaming data processor (routing to data lake + reliability)
5. Data lake (raw data storage)
6. Big data warehouse (cleaned/structured data + context)
7. Data analytics (insights, visualization, optimization ideas)
8. Machine learning (models for control apps, periodically updated)
9. Control applications (commands/alerts to actuators; rule-based or ML-based)
10. Device administration (device lifecycle, configuration, maintenance)
11. User administration (who can access/operate the system)
12. Security monitoring (logging/analysis to prevent breaches early)

---

Detailed methodology / “pipeline” presented (step-by-step)

Step 1: Things

A “thing” is an object equipped with:

• Sensors: collect data and send it over a network.
• Actuators: perform actions based on received commands (e.g., switch light on/off, open/close doors, adjust engine speed).
• Smart devices as part of the overall “thing.”

Step 2: Field Gateway (between things and cloud)

The field gateway:

• Transports data
  • Things → Cloud (uplink)
  • Cloud → Things (downlink)
• Performs data preprocessing and filtering before cloud transfer to:
  • reduce data volume
  • reduce storage needs
  • reduce memory/processing power requirements
• Relays control commands from cloud back to things so actuators can act, completing the sensing → actuation loop.

Step 3: Cloud Gateway

The cloud gateway:

• Supports data compression for efficient transmission.
• Ensures secure data transmission between field gateways and IoT cloud servers.
• Provides protocol compatibility:
  • communicates with field gateways using different protocols depending on what they support.

Step 4: Streaming Data Processor

This component:

• Ensures smooth transition of incoming data from the cloud gateway to:
  • a data lake
  • control applications
• Emphasizes data integrity:
  • avoids occasional loss or corruption of data.

Step 5: Data Lake

• Stores device-generated data in natural/raw format.

Step 6: Big Data Warehouse

The big data warehouse:

• Extracts relevant data from the data lake for meaningful insights.
• Stores only cleaned, structured, and matched data (unlike the data lake, which holds all raw sensor data).
• Stores context information such as:
  • where sensors are installed
  • which commands were sent to which things
  • timestamps of events

Step 7: Data Analytics

Using warehouse data, analytics:

• Finds trends and derives actionable insights
• Produces visualizations (schemes/diagrams/infographics)
• Improves device performance, identifies inefficiencies, and guides improvements to make the IoT system more reliable and customer-oriented
• Uses detected correlations and patterns to help create algorithms for control applications

Step 8: Machine Learning and model lifecycle

• ML generates highly accurate/efficient models for control applications based on patterns from the big data warehouse.
• Models are continuously improved and updated periodically (e.g., weekly/monthly), similar to mobile OS updates.
• Data analysts:
  • test and evaluate whether new ML models are effective
  • approve models before deployment
• Once approved, models are implemented in control applications.
• This creates an iterative loop to keep models up-to-date and optimized for their specific control tasks.

Step 9: Control Applications

Control applications:

• Send automatic commands and alerts to actuators
• Examples:
  • smart home windows open/close based on weather forecasts
  • watering systems activate based on sensor readings (e.g., soil dryness)
• May store commands in the big data warehouse to support:
  • troubleshooting (e.g., commands were sent but actuators didn’t execute—check connectivity/gateways/actuators)
  • security investigation (e.g., unusual or excessive commands may indicate breaches)
• Can be:
  • Rule-based (follow specialist-defined fixed rules)
  • Machine-learning based (use periodically updated ML models)

Step 10: Device Administration

Purpose: ensure connected devices operate reliably and securely (beyond installation).

Key parameters include:

• Device identification
  • establish device identity to confirm it is genuine with trusted software
• Configuration and control
  • set initial parameters (e.g., unique device ID)
  • update settings over time (e.g., interval between data messages)
• Monitoring and diagnostics
  • ensure smooth, secure device performance
  • reduce risk of breakdowns
• Software updates and maintenance
  • add functionality
  • fix bugs
  • address security vulnerabilities

Step 11: User Administration

Purpose: control access to an IoT system.

Includes:

• identifying users
• defining roles, access levels, and ownership
• adding/removing users
• managing user settings
• controlling access to information
• granting permissions for operations
• controlling and recording user activities

Step 12: Security Monitoring

Rationale:

• connected things generate large volumes of data needing secure transmission and protection
• devices can be entry points for attackers
• attackers might target the “brain” of the IoT system

Measures described:

• log and analyze commands from control applications to things
• monitor user actions
• store security-relevant logs in the cloud

Benefits:

• detect breaches early and reduce impact (e.g., block suspicious commands)
• identify patterns of suspicious behavior
• compare suspicious samples with system logs to prevent penetrations and minimize damage

---
