"I Built a DIY Wind Tunnel at Home! 💨🛠️"

Main summary

Key takeaways

Technology

Summary (technological concepts, features, and analysis)

  • DIY wind tunnel built at home to visualize airflow around objects using:
    • Controllable airspeed
    • Mist/smoke-like visualization

Air generation & control

  • Uses a variable-speed computer fan controlled by a knob.
  • The fan pulls and pushes air through the tunnel.
  • The tunnel design helps accelerate airflow and deliver it to the test section.

Tunnel geometry & chamber design

  • The tunnel has a narrowing shape (the builder notes the box was initially “too big”).
  • The test/display section is sized based on acrylic/plastic sheets from a hobby store.
  • A plate with holes and alligator clamps enable mounting/holding objects at different heights (e.g., holding an airplane).

Laminar flow approach using “straw honeycomb”

  • Inside the tunnel is a chamber filled with about 1,800 straws used as a flow straightener to improve airflow uniformity (aiming for more laminar streams).
  • The original plan was to cut straws down, but they were broken/impractical, so the builder used full-length straws.
  • Goal: reduce turbulence so air forms straight, parallel streams, making it easier to observe airflow behavior around a target.

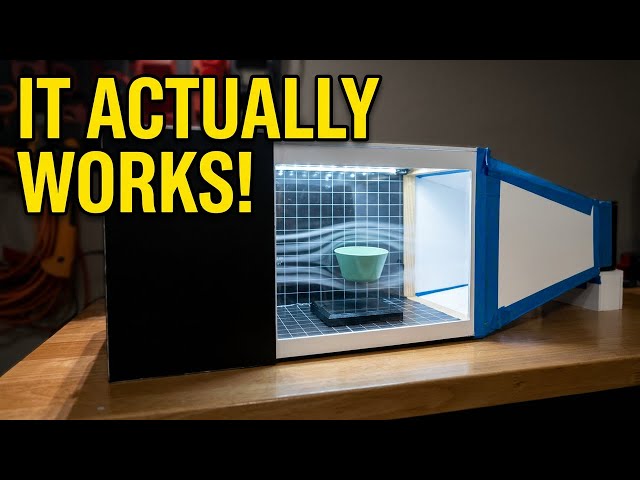

Visualization method (mist generator)

  • A mist chamber uses an “$8 water mister” to create fine mist.
  • The fan draws mist through the test area, across a bowl (used as a first test object/shape), and then out the other side.
  • Observations while varying fan speed:
    • Slower speeds: airflow moves closer to the bowl.
    • Higher speeds: airflow rises, goes over the top, and can flow around/through the object.

Planned improvements / problems identified

  1. Structural/design issue at a taped foam-core portion

    • The builder cut one trapezoid panel and assumed it would work for all sides, but it didn’t.
    • Plans to upgrade the base and overall geometry (currently 1/4 in foam core board).

  2. Fabrication difficulty with the straw array

    • Assembly involved being burned by a hot glue gun (~20 times).
    • Indicates a need to rebuild/optimize the straw setup for safety and consistency.

  3. Mist system is messy and performance-sensitive

    • The mister produces mist but also creates a lot of mess and wets the surroundings.
    • Adding a lid reduces airflow dramatically; offsetting the lid helps recover airflow.
    • The builder wants a better misting setup to improve output and reduce wetting.

Experiment ideas and future directions (research/wishlist)

  • Testing different objects

    • Mentioned: bowl, spoons
    • Future ideas include golf ball spinning and a small basketball
    • Even conceptual targets (e.g., a model inspired by How to Train Your Dragon—Toothless)

  • 3D printing improvements

    • Replace the straw layout with more consistent, controlled geometry.
    • Want tunable parameters such as:
      • Hole diameters
      • Mesh
      • Chamber shapes
    • Aim: compare how different airflow configurations affect results.

  • Alternative visualization approach

    • Saw advice suggesting water instead of oil to reduce residue/invasiveness.
    • Avoid incense smoke due to potential fire alarms; the project has already moved toward water mist.
    • Wants to increase mist output further and improve overall system performance.

Main speakers / sources

  • Primary speaker: The video creator/builder (describes their own build and experiments directly on camera).
  • External referenced source: “A guy” from other YouTube videos who suggested water instead of oil and cautioned against incense smoke (no channel name provided in subtitles).
