Struktur dan Konstruksi Arsitektural: Sistem Struktur Linier, Bidang, dan Ruang

Main Ideas and Concepts

• Lecture focus: Structural concepts in architecture—how linear systems, planar systems, and spatial (3D) systems relate to structural elements and architectural expression.
• Interdisciplinary planning workflow: Architects, structural engineers, and MEP (mechanical-electrical) planners coordinate through stages (preliminary → update/detail) using overlay/checking drawings to find mismatches and resolve coordination issues.
• Basic structural units (typical frame components):
  • Columns
  • Beams (main beams / child beams)
  • Floor slab (often concrete plates)
  • Possible variants: rigid frames vs. wall-supported systems
• Vertical and horizontal load paths:
  • Loads travel through combinations of:
    • Vertical supports: columns / bearing walls
    • Horizontal supports: plates / beams
  • Bearing behavior can be achieved through:
    • Rigid frames, or
    • Bearing-wall systems
  • The systems differ in how loads are transferred.
• Structural system vs. architectural skin / expression:
  • After choosing the structural system (e.g., planar vs. plastic/curved frame behavior), the architect decides how the building skin behaves:
    • Covers/obscures the structure
    • Unites with/expresses the structure
    • Lets the structure stand as a free-standing visible element
  • Skin purpose includes environmental performance: filtering weather, climate, pollution, noise.
  • Multiple architectural examples (from well-known architects) illustrate different expression strategies.
• Structural elements classification (element level and system level):
  • Rigid elements: columns, beams, arches, plates, shells
  • Flexible/non-rigid elements: membranes, cables
  • Repeating element networks: trusses/rod frameworks, gridshell-like concepts
• Structural principles for load resistance:
  • Point (axial) / concentrated load vs. uniform vs. distributed loading
  • Solid construction vs. skeleton/frame construction:
    • Solid (bearing-wall): relies on mass/continuous wall elements to distribute loads
    • Skeleton/frame: relies on reinforced concrete/steel frame members
• Examples of structural behavior categories:
  • Trusses (2D and 3D): short straight rods in triangular patterns; members mainly experience tension/compression, not bending
  • Arches: curved members transferring forces mainly in one direction; stability depends on curved-load behavior
  • Frames (portal/rigid frame): stability from beam-column action; bending occurs
  • Walls / plates / shells:
    • Walls resist loads (vertical/horizontal depending on system)
    • Plates/folded plates distribute loads in planes
    • Shells are curved rigid surfaces distributing loads across curved geometry
  • Cable / membrane / tent systems:
    • Cables typically cannot stand alone; they need membranes/tents or another supporting structural system
    • Membranes/tents behave like thin flexible surfaces
    • Cable systems are often used for wide-span structures

Methodology / Process Instructions

• Coordination and checking via overlay drawings:
  • Combine drawings from:
    • Architect
    • MEP/installation services
    • Structural engineer
  • Use overlay/comparison to detect:
    • alignment/shift
    • mismatches
    • errors between structural and non-structural systems
  • Apply fixes after mismatches are identified.
• Planning expressive structural decisions (conceptual steps):
  1. Determine the structural system type:
     • planar, or plastic/curved/spatial expression
  2. Decide how the skin relates to the structure:
     • cover/obscure,
     • unite with,
     • express as exposed structure

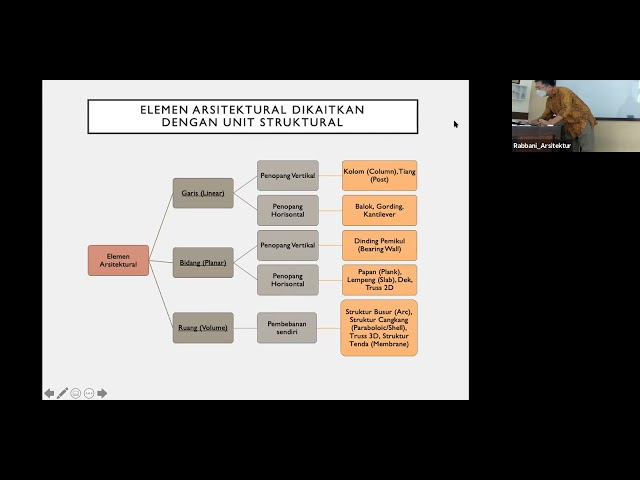

Structural System Ordering and Key Terms

• Element level: columns, beams, slabs/plates, walls (bearing/shear), trusses, arches, frames, shells, membranes, cables.
• System level: recurring mapping of named system categories to behavior types:
  • Linear (rod-like / frame-like)
  • Planar (plate-like)
  • Spatial (3D self-supporting curved/shell/cable-membrane networks)
• Plane vs. space distinction:
  • Plane frames / plane trusses operate in 2D
  • Space frames / 3D trusses / shells distribute forces in 3D

Teaching/Lesson Takeaways

• Structural design is not only calculations—architectural expression (visible structure vs. covered structure) and skin function are critical.
• System choice affects:
  • how loads travel (vertical/horizontal),
  • available architectural form possibilities (especially wide spans),
  • how much the building can express its structure.
• Local context and local materials influence structural/architectural choices (examples referenced include local wisdom and material availability).

Assignment / Tasks

• Task type: Group assignment for class presentation
• Group size: 3–4 people per group
• Deliverable: PowerPoint including MP4/video examples
• Content requirements:
  • Choose one type of structural element (examples mentioned include membranes, cable structures, and other frameworks).
  • Provide 4 applications/variations of the chosen structural element type.
  • A larger quota is mentioned in subtitles with unclear wording; it appears to refer to “44” examples/variations distributed across “11 types” (exact mapping is not perfectly clear due to subtitle errors).
• What students must describe: the structural element type and its applications in real cases
• Timing: “This week” (handed down); presentation scheduled for next week
• Attendance note/code: “12 6779” (for those present)

Speakers / Sources Featured

Speakers

• The lecturer (unnamed in the subtitles; referenced as “Mr. Irfan” in the assignment context and as “Sir” during Q&A)

People and Works Referenced (Examples)

• Taipan (previous lecture mentioned)
• Irwan / Irfan (named lecturer referenced for coordination/assignment instructions)
• Architectural figures/examples:
  • Le Corbusier
  • Frank Gehry
  • Mies / Frank Lloyd Wright (Frank Lloyd Wright explicitly referenced)
  • Norman Foster
  • Santiago Calatrava
  • Buckminster Fuller (referenced indirectly via “space frame innovator / Mister bowler”)
  • Jansen (mentioned, unclear which project/architect due to subtitles)
  • Centre Pompidou (architect not clearly legible in subtitles)
  • Notre-Dame
  • Guggenheim Museum (Frank Gehry’s work referenced)
  • HSBC Building, Hong Kong (referenced)

Case Study / Disaster Mentioned

• WTC (World Trade Center) collapse discussion (used as a structural/fire-performance example)

Books / References Mentioned

• Structural architecture textbook by “McDonald” (English McDonald book)
• Francis DK Ching’s book (mentioned for terminology context)
• Several other books briefly referenced but unclear due to subtitle errors (e.g., “archvision order…”, “clove belting…”, “architecture design notebook”, “basic construction… series”).
