Overview

This video demonstrates how to simulate a PID controller in Simulink using Simulink-PID blocks. It starts from a previously built P-D (PDI) controller, then adds integral action, followed by an analysis of how tuning each PID gain affects the system response.


What’s built / how it’s implemented

  • The model starts with an already-designed PDI controller (Proportional–Differential–Integral).
  • To add integration action, the presenter uses a transfer function block in Simulink that represents an integral term:
    • integration = constant / s
    • implemented via a “transform function” / transfer function block.
  • The overall Simulink model includes:
    • the plant (referred to as a reactor, or potentially any physical system such as a motor),
    • a reference input (target setpoint),
    • controller blocks for P, D, and I actions.

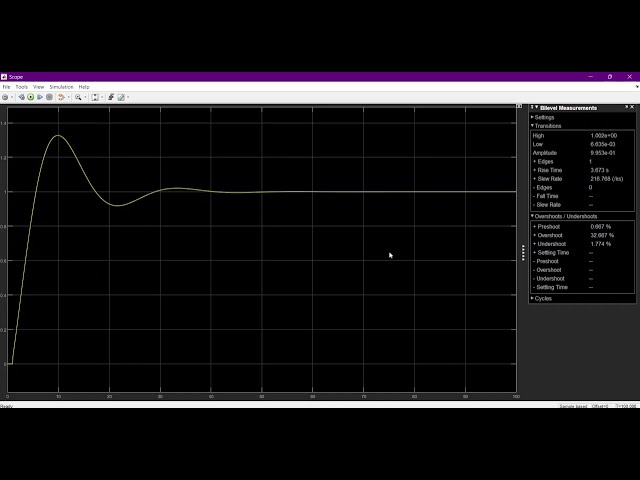

Simulation and performance checks

The simulation is repeatedly run, and standard transient-response metrics are evaluated:

  • Overshoot (described as the “big jump” / peak deviation)
  • Rise time (time to reach near the setpoint)
  • Steady-state response (final value)
  • Steady-state error compared to an allowed tolerance of 1%
    • Acceptance mentioned as ≥ 0.99 (meaning error is within 1%)

Key tuning experiments and observed effects

1. Adjusting an integral-related parameter to fix steady-state error

  • Initial response is described as “decent” but slightly outside tolerance.
  • Example values mentioned:
    • steady-state around 0.9615, still above allowable error (i.e., not meeting the tolerance requirement)
  • By changing the relevant gain (example: set to 8):
    • overshoot is about 3.6% (below a 5% threshold)
    • rise time remains < 0.5 s
    • steady-state response is essentially 1 (excellent tracking)

2. Increasing simulation time

  • With a longer run (example: 100 seconds):
    • rise time still stays < 0.5 s
    • overshoot worsens slightly but still remains < 5%
    • steady-state remains acceptable, near the limit around 0.99

3. Increasing Proportional gain (P)

  • Reported effects:
    • rise time decreases (faster response)
    • overshoot increases (larger peak)
  • Example mentioned:
    • raising P to around 40 increases overshoot
      • reported overshoot around ~7%
      • peak read from the plot around ~11.79%
    • rise time improves to roughly 0.25 s
    • steady-state error improves to < 1%

4. Increasing Differential gain (D)

  • Reported effects:
    • more damping / smoother response
    • overshoot should reduce due to damping, but interactions with P can limit how much overshoot drops
  • Example mentioned:
    • setting D to 8 yields a smoother, more damped response
    • steady-state error stays < 1%
    • rise time becomes much slower (possibly approaching ~1 s)
  • Important interaction note:
    • because P and D interact, overshoot may not automatically fall below the 5% limit even if damping increases.

5. Increasing Integral action (I)

  • Warning: I must not be made too large.
    • integral action “adds a pole” / affects stability.
  • Example:
    • pushing the integral-related value far beyond a remembered limit (example: 400 vs allowed limit around 130)
    • results in instability
    • the simulation shows divergence behavior, and plot scaling becomes extreme (indicating instability)
  • Conclusion:
    • larger I can worsen transient response (slower/poorer instantaneous behavior) even if steady-state accuracy improves.

Overall takeaways / tutorial conclusions

  • Adding integral action (I) using a transfer-function block improves steady-state accuracy and can eliminate steady-state error.
  • P gain trade-off: faster rise time but more overshoot.
  • D gain trade-off: smoother/damped behavior but often slower rise time.
  • I gain constraint: too large integral gain can destabilize the closed-loop system.

Main speakers / sources

  • Main speaker: the unnamed presenter/teacher in the video (speaking throughout the subtitles).
  • Referenced tool/implementation: Simulink / Simulink PID using transfer-function blocks.
