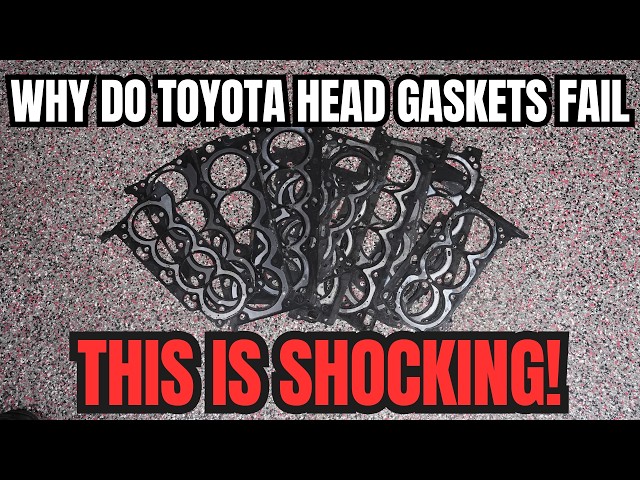

Why Do Toyota Head Gaskets Fail? This is SHOCKING

Main summary

Key takeaways

Product Review

Product/Topic Reviewed

This video is a technical review/explanation of Toyota head gasket failures (not a single consumer product). It focuses on:

  • Which Toyota/Lexus engines/models are affected
  • What causes the failures
  • How to minimize risk

Key Findings (What’s failing and where)

Main culprits (models/engines called out)

  1. 2010–2013 Toyota Prius (2ZR engine)

    • Called the “number one offender” for the Prius platform.
    • Typical internal leak pattern: between cylinders 2–3 or 1–2.
    • Symptoms: rough starts and/or mysterious coolant leak.
    • Progression: eventually coolant/oil-like smoke from the exhaust after shutdown (coolant oozes into a cylinder while hot/pressurized, then burns off on restart).

  2. 2008–2013 Toyota Land Cruiser / Lexus LX 570 (UR series V8: UR / URF; specifically 1UR and 3UR)

    • Called the second major offender and described as “raining on us in the shop.”
    • Affected vehicles listed:
      • 2008–2013 Land Cruiser / LX 570
      • 2007–2013 Tundra (4.6 or 5.7; video says not 4.7)
      • 2008–2013 Sequoia
      • 2010–2013 Lexus GX460
    • Typical pattern: misfires when cold (runs rough briefly, then smooths out).

    • Typical coolant leak cylinders: #5 and #7 (video emphasizes it sees every single one; rarely #1/#3).

    • Progression: coolant burns off initially, then puffs coolant out of exhaust when severe.

  3. Less common / “not as offending” cases

    • Toyota Corolla and Matrix (2009–2010, 2ZR engine)
      • Known to show similar rough-cold-start behavior and head gasket-related issues, but less frequent than Prius.
    • V6 2GR-FE (video references 2GR)
      • Typical: external coolant leak; the engine may run fine.
      • Eventually requires topping off: “adding coolant every single day.”

  4. 2AR-FE (referenced as an example of coolant-coating erosion)

    • The video implies early 2AR-FE (around 2009–2010) can show similar gasket coating failure, often linked to not replacing coolant.

Core Reason Given for Why Head Gaskets Fail

The “black coating only on the perimeter” design flaw (main technical claim)

  • Toyota used a multi-layer steel head gasket, but black coating was applied only around the perimeter/near cylinder regions—leaving other areas exposed.
  • The video argues this is problematic because the coating can peel/erode/bubble over time.
  • Once eroded, it creates a thin compromised sealing area, allowing coolant to work through tiny gaps and cause internal leaks.

Why Toyota fixed it (design change)

  • 2014+ (for the V8 described): Toyota supposedly moved to an all/full coated head gasket design.
  • The author claims this is why they see far fewer/no issues on newer examples:
    • “We don’t have a single issue” on 2014+ 3UR/1UR examples mentioned.

Why it happens “on some but not all”

  • The video repeatedly points to:
    • Coolant acidity
    • Coolant not being replaced (especially when owners retain original coolant for long periods)

Pros / Benefits (from a repair/owner perspective)

  • Aftermarket/repair replacement benefit
    • When a head gasket fails, the head gasket kits reportedly include the fully coated gasket design.
    • The author suggests these kits restore a better sealing surface compared to the failing factory version.

Cons / Downsides (user experience & cost/risk)

Expense and escalation (“snowballing” effects)

Head gasket failure is described as horribly expensive, with cascading damage such as:

  • Coolant entering cylinders
  • Oil contamination (“milky oil” mentioned)
  • Potential oil burning
  • Potential rod knock (worst case)

Symptoms can be subtle early on

  • Early signs include rough cold starts and intermittent coolant loss.
  • Many drivers allegedly don’t check coolant, allowing escalation.

How Owners Can Detect Problems (DIY experience)

For DIY pre-purchase inspection on V8s, the video suggests:

  • Pressure test the cooling system
  • Remove spark plugs and use a scope camera to look for coolant droplets in cylinders after pressurizing and waiting 5–10 minutes

Prevention / Minimization Advice (most actionable takeaway)

Main recommendation: coolant service interval

The strongest prevention advice is:

  • Change coolant every ~50,000 miles / 5 years

This is presented as a practical method to reduce gasket coating erosion from acidic/aging coolant.

What if the car is already high-mileage?

  • The video states it may be too late to stop existing damage on high-mileage cars with original coolant.
  • However, coolant service may still help reduce further worsening, depending on severity.

Comparisons Made

2013 vs 2014+ V8 comparison

The author’s claim is that failures drop after the gasket coating redesign:

  • “We have zero 2014s” failures observed
  • Contrasted with many failures from 2010–2013 in their shop

The comparison hinges on:

  • Perimeter-coated vs full-coated gasket design

Notable Specific Claims / Statistics

  • No star ratings or numerical scoring.
  • Key comparative observation includes a qualitative “zero observed” claim:
    • Zero 2014+ V8 head gasket issues reported by the author in their experience
  • Maintenance recommendation includes numbers:
    • 50,000 miles / 5 years coolant changes

Overall Verdict / Recommendation

Recommendation (buyer/owner focus)

  • If buying used Toyota/Lexus affected engines, prioritize service history showing coolant was replaced.

Best buy years (per the video’s claims)

  • For V8 UR/URF concerns: 2014 and up are strongly preferred due to the fully coated gasket change.

If you already have an older affected vehicle

  • Coolant replacement may not reverse prior gasket damage, but it’s framed as the best way to:
    • Minimize further risk
    • Reduce progression toward oil contamination and potentially rod knock

Unique Points Mentioned (All distinct items gathered)

  1. Prius (2010–2013, 2ZR): known issue; internal leaks 2–3 or 1–2; rough starts/mysterious coolant leak; can progress to exhaust puffing.
  2. V8 UR series (2008–2013): heavy shop prevalence; cold misfire then smooth; coolant leak patterns often #5 and #7.
  3. GX460 highlighted as especially alarming; 1URF more susceptible than 3UR (though both common).
  4. Corollas/Matrix (2009–2010, 2ZR) also affected, but less common.
  5. 2GR-FE described as typically external coolant leaks without internal leakage; engine may run fine; topping off becomes frequent.
  6. Root cause claim: perimeter-only black coating creates compromised sealing areas; coating can peel/bubble on multi-layer steel.
  7. 2014+ V8 gasket redesign: full coating; failures drop dramatically.
  8. Claims that it’s not mainly caused by bad driving/maintenance (though coolant acidity is implicated).
  9. Coolant acidity/old coolant examples linked to coating deterioration (e.g., 2AR-FE cases).
  10. Prevention is mostly coolant replacement; damage may already be done if coolant was never changed.
  11. Buying caution if no coolant replacement record, especially on vehicles below 2013 and around ~180k–190k miles (as mentioned).
  12. DIY diagnostic method: pressure test cooling system; remove spark plugs; scope for coolant droplets after 5–10 minutes.
  13. Failure cascade described: head gasket leak → coolant in cylinder → coolant burns → oil burning/sanding → possible rod knock.
  14. Repair benefit: gasket kit includes fully coated gasket and is preferable to factory failing design.
  15. Prevention recommendation: change coolant every 50,000 miles / 5 years; doing so keeps owners ahead if Toyota changes the design later.
  16. Future expectation: hope the fully coated approach continues.
  17. “Why Toyota?” speculation: cost-cutting, with later change coming quietly in 2014.

Speakers / Multiple Views

  • Single speaker/author viewpoint dominates (shop experience + technical theory).
  • No clear multiple speaker segments with different conclusions—emphasis shifts between Prius, V8 UR, and other engines.
