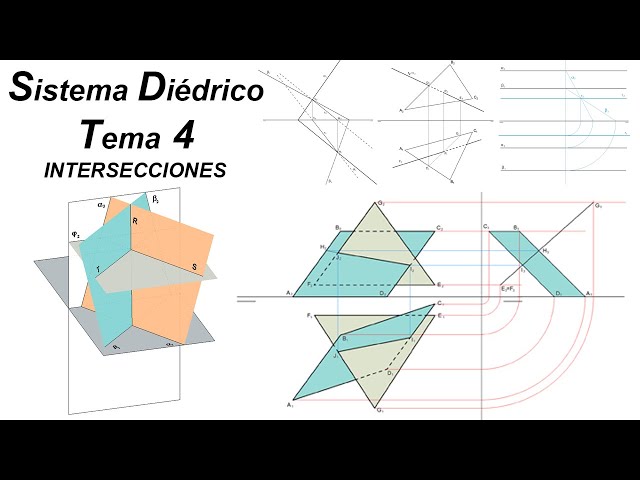

Intersecciones en Sistema Diédrico - Tema Completo 4

Main summary

Key takeaways

Educational

Main ideas / concepts taught (Diédrico system: intersections)

  • The video explains how to find intersections in the dihedral (Diédrico) drawing system using traces and auxiliary planes.
  • Core rules:
    • The intersection of two planes is generally a line.
    • The intersection of a line and a plane is generally a point.
  • How to find an intersection line using trace matching:
    • Where horizontal traces intersect → gives the corresponding horizontal trace of the result.
    • Where vertical traces intersect → gives the corresponding vertical trace of the result.
  • If the trace intersections fall outside the visible drawing limits:
    • Extend the traces (using discontinuous/dashed parts where appropriate), or
    • Use an auxiliary plane to generate the missing intersection points/lines.

Methodologies & step-by-step procedures presented

A) Intersection of two planes (Diédrico, using traces)

  1. Identify plane types (oblique/horizontal/vertical/parallel-to-ground, etc.).
  2. Locate traces for each plane:
    • Each oblique plane has:
      • a vertical trace (typically noted like ( \alpha_2, \beta_2 ))
      • a horizontal trace (typically noted like ( \alpha_1, \beta_1 ))
  3. Compute the traces of the intersection line (r):
    • Vertical trace of line (r): find where the vertical traces of the planes intersect.
    • Horizontal trace of line (r): find where the horizontal traces of the planes intersect.
  4. Construct the full intersection line:
    • Draw in both projections by joining corresponding projections.
  5. Handle visibility/quadrants:
    • Parts not passing through the first quadrant are drawn discontinuously (dashed).

B) Special case: two oblique planes whose traces intersect in the visible part

  • Use the general trace method directly:
    • Where ( \alpha_1 ) and ( \beta_1 ) intersect → determines the horizontal trace of the intersection line.
    • Where ( \alpha_2 ) and ( \beta_2 ) intersect → determines the vertical trace.
  • Then connect projections to obtain the line (r).

C) Special case: two oblique planes whose traces intersect only in non-visible parts

  1. Remember traces are infinite:
    • even if you only draw the continuous part, traces continue and are drawn discontinuously beyond the ground line / first quadrant.
  2. Extend the traces until you can conceptually capture the intersection locations:
    • extended vertical traces → gives the vertical trace of the result line
    • extended horizontal traces → gives the horizontal trace of the result line
  3. Construct (r) as before, noting it may not cross the first quadrant, so large parts remain dashed.

D) Special case: two oblique planes parallel to the ground line

  • When corresponding traces do not intersect (or intersection isn’t computable by standard traces), the method changes.
  1. Use the profile view:
    • In profile, the planes appear as lines; their intersection (or coincident direction behavior) indicates where the intersection line will be.
    • The intersection line becomes parallel to the ground line.
  2. Translate back to diédrico using unfolding/profile construction steps:
    • draw a vertical line (profile projection plane)
    • transfer distances from horizontal trace intersections via arcs/compass
    • draw the intersection in the profile view
    • project/unfold back to obtain:
      • horizontal and vertical projections of (r)
  3. The resulting line (r) is constructed to be parallel to the ground line.

E) Special case: oblique plane intersecting a horizontal plane

  1. The horizontal plane has only one effective trace behavior.
  2. Find the vertical trace intersection between:
    • the oblique plane’s vertical trace and the horizontal plane’s vertical trace behavior.
  3. The intersection line is horizontal (parallel to the horizontal traces of the oblique plane).
  4. Construction in projections:
    • horizontal trace found from intersection with ground/horizontal projection behavior
    • vertical projection obtained by parallelism with the corresponding traces

F) Special case: oblique plane intersecting a vertical plane → “frontal lines”

  1. If the vertical plane is parallel to the direction of the oblique plane’s vertical trace:
    • it may lack one kind of trace intersection.
  2. The intersection line becomes a frontal line with specific parallelism properties relative to the oblique plane’s traces.
  3. Construct using:
    • intersection of available traces (often horizontal)
    • then parallelism to define the missing projection behavior
    • set continuity/dashed visibility based on quadrant position

G) Special case: two oblique planes where vertical traces converge outside drawing limits (missing trace intersection)

  1. The standard trace method fails because one intersection point lies outside drawn limits.
  2. Use an auxiliary plane (often horizontal) ( \phi ):
    • compute:
      • ( \phi \cap \alpha ) → one line
      • ( \phi \cap \beta ) → another line
  3. Intersections of those generated lines provide the two points needed to reconstruct intersection line (r).

H) Special case: intersection of two horizontal-projecting planes (leads to vertical intersection line)

  • When vertical traces are parallel and do not intersect, the intersection line is a vertical line (r).
  1. Find where horizontal traces ( \alpha_1 ) and ( \beta_1 ) intersect → gives the horizontal trace point behavior.
  2. Project perpendicularly to obtain projections:
    • (h_2) lies on the ground line
    • the vertical projection (r_2) is a vertical line parallel to the parallel vertical traces.

I) Special case: oblique plane intersecting a plane that contains the ground line

  • Because the ground-line-containing plane has coinciding traces:
    • horizontal and vertical trace behaviors simplify (both share the same ground intersection point).
  • The intersection line passes through the ground line intersection point.

Construction:

  1. Use a profile auxiliary plane to find the second point:
    • its intersections with each plane yield lines that intersect in profile view.
  2. Construct the full line through:
    • the ground-line point and the second computed point.

J) Special case: two oblique planes sharing a vertex

  • All traces intersect at the same ground vertex:
    • that vertex is both the horizontal and vertical trace location.
  • To define the line uniquely:
    • use an auxiliary horizontal plane ( \Sigma ) to generate two intersection lines with the planes;
    • the intersection of those lines gives a second point.
  • Project:
    • vertex + second point → build intersection line (r),
    • with discontinuities based on quadrant visibility.

K) Intersection of three planes (Diédrico)

  • Key concept:
    • The intersection of three planes is a single point common to all.

Method:

  1. Compute the intersection line of plane A with plane C → line (r).
  2. Compute the intersection line of plane A with plane B → line (s).
  3. The point where lines (r) and (s) intersect is the common point (p).
  4. Optionally, confirm by checking consistency with ( \text{B} \cap \text{C} ).

L) Line-plane intersection (general Diédrico approach)

  1. Warning:
    • The intersection point is not necessarily at the intersections of plane traces with the line’s projections.
  2. Use an auxiliary plane:
    • Choose an auxiliary plane that contains the line (r).
    • Compute the intersection between:
      • the auxiliary plane and the given plane (call it line (s)).
    • The point where line (r) meets line (s) is the desired intersection point (p).

Construction steps (in projections):

  • Find line trace projections to locate relevant points on the ground line.
  • Construct the auxiliary plane using its vertical/horizontal traces passing through line trace points.
  • Use trace intersections of the planes to locate trace points of line (s).
  • Determine where line (r) intersects line (s) in projections → obtain (p_1, p_2).

M) Line-plane intersection simplifications with projecting planes

  • If the auxiliary plane chosen is a projecting plane (or otherwise aligned so intersections are “easy”):
    • the auxiliary plane’s trace aligns, simplifying projection coincidence
    • the result is often found via direct trace coincidence/parallelism rather than heavier reconstruction.

Polygonal-plane intersection (special exercises)

N) Intersection of two planes defined by polygonal shapes

Approach:

  1. Derive the support planes of the polygonal regions by determining their effective traces.
  2. Use profile projection to understand how each plane cuts the other.
  3. In profile, one plane may appear as a straight segment, simplifying cut geometry.
  4. Transfer cut points back to vertical projections and determine which parts are:
    • common (solid/continuous edges)
    • hidden (dashed), depending on depth/visibility.

O) Intersection of a triangle (polygon) with a line

  1. Use a projecting plane through the line (r) to intersect the triangle:
    • ((\text{aux plane}) \cap (\text{triangle})) produces an intersection segment.
  2. That segment intersects the line at the desired point (p).
  3. Determine visibility:
    • compare elevations (in elevation view) of the line point vs. triangle edge to decide where the line is continuous vs dashed.
