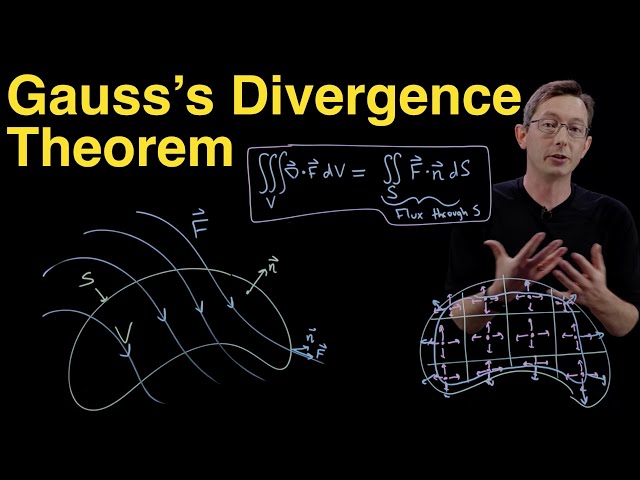

Gauss's Divergence Theorem

Main ideas and concepts

• Gauss’s Divergence Theorem (core purpose):

  • Connects the flux of a vector field through a closed surface to the volume integral of the divergence of that vector field.
  • Acts as a powerful “accounting” tool for conserved physical quantities (e.g., mass, momentum, energy) to derive partial differential equations (PDEs) from physical conservation laws.

• Physical interpretation (flux and conservation):

  • Consider a fluid/field represented by a continuous vector field ( \mathbf{F} ) flowing through space.
  • For a volume (V) with closed boundary surface (S), the theorem relates:
    • how much “stuff” leaves/enters through the boundary (flux through (S))
    • to
    • how much the field is “generated/destroyed” inside (divergence integrated over (V)).

• Flux definition via normals and dot product:

  • Flux through a surface is computed by integrating the component of ( \mathbf{F} ) normal to the surface:
    • Use the outward normal vector ( \mathbf{n} )
    • Each surface element contributes via the dot product ( \mathbf{F}\cdot \mathbf{n} )
    • Integrate this over the entire surface (S).

• Intuitive motivation (why surface flux equals volume divergence integral):

  • Imagine partitioning the volume (V) into many tiny boxes (infinitesimal “cells”).
  • Flux contributions across shared internal faces cancel out if the field is continuous.
  • Only flux through the outer boundary remains, matching the net surface flux.
  • This supports the idea that integrating local divergence over the volume gives the same net effect as integrating normal flux over the boundary.

• How Gauss’s theorem is used to derive PDEs (example: mass conservation):

  • Start from conservation:
    • The rate of change of total mass inside (V) equals the negative of the mass flux leaving through (S).
  • Convert the surface integral (flux through boundary) into a volume integral using Gauss’s theorem.
  • Because the resulting equation holds for all volumes, the integrand must be zero everywhere, producing a local PDE: the mass continuity equation.

• Conditions / limitations emphasized:

  • The reasoning assumes continuity (no sharp discontinuities).
  • If ( \mathbf{F} ) or ( \rho ) is non-continuous (shock-like behavior), derivatives may not be well-defined; then the equation must be treated with a sufficiently large control volume or other methods.

• Big-picture lesson:

  • Many classical physics laws can be expressed as conservation laws in integral form.
  • Gauss’s divergence theorem converts those integral conservation laws into differential (PDE) forms under continuity assumptions.
  • Briefly mentioned examples: conservation of mass, momentum (Newton’s 2nd law as momentum conservation), and energy; leading to PDEs such as Navier–Stokes and Maxwell’s equations (as examples of conservation-law-based derivations).

---

Methodology / instruction-style steps (Gauss’s theorem → PDE via conservation)

A) Apply Gauss’s divergence theorem (general statement)

• Choose:
  • A continuous vector field ( \mathbf{F} )
  • A volume (V) with a closed surface (S=\partial V)

• Compute:

  • Surface flux out of (V): [ \iint_{S} \mathbf{F}\cdot \mathbf{n}\, dS ]

  • Relate it to:

  • Volume integral of divergence: [ \iiint_{V} (\nabla\cdot \mathbf{F})\, dV ]

• Use equality:

  • Net outward flux through (S) equals the integral of divergence over (V).

B) Derive the mass continuity equation (as demonstrated)

• Define mass in the volume:

  • Total mass: [ \iiint_{V} \rho\, dV ]

• Express conservation of mass:

  • Rate of change of mass in (V) equals negative mass flux leaving (V).
  • Rate form: [ \frac{d}{dt}\iiint_{V}\rho\, dV = -\iint_{S} (\rho \mathbf{f})\cdot \mathbf{n}\, dS ] (The description notes the flux involves density and the flow velocity field.)

• Convert the surface flux to a volume divergence:

  • Apply Gauss’s theorem to obtain: [ -\iiint_{V} \nabla\cdot(\rho \mathbf{f})\, dV ]

• Combine into one volume integral:

  • Move the time derivative inside to get an integrand involving:
    • ( \displaystyle \frac{\partial \rho}{\partial t} )
    • plus ( \displaystyle \nabla\cdot(\rho \mathbf{f}) )

• Use “holds for all volumes” logic:

  • Since the equality is true for every possible (V), the integrand must be zero everywhere: [ \frac{\partial \rho}{\partial t} + \nabla\cdot(\rho \mathbf{f}) = 0 ]

• Name and interpret the PDE:

  • This is the mass continuity equation, expressing local conservation of mass.

---

Speakers / sources featured

• Speaker: Unnamed narrator / instructor (no specific name given in the subtitles).
