Diseño de Instalaciones 1|FAU-UNT|10|Instalación Sanitaria/Desagües Cloacales|Clase 2-Parte 2

Main summary

Key takeaways

Educational

Main ideas and concepts (Secondary vs. Primary sewer systems)

  • The class focuses on plumbing installation for “secondary sewer systems” (house fixtures) and how they connect to the primary/main sewer system.
  • Secondary fixtures (bathroom, laundry, kitchen) handle relatively cleaner wastewater and typically discharge without solids, so they use smaller diameters and connect to a secondary drainpipe (often described as a drainpipe/trap system that collects them).
  • The primary system is the larger network that ultimately carries wastewater to:
    • the inspection chamber, and then
    • the street/sewer.

Fixture layout: what counts as “secondary fixtures” and where they discharge

Bathroom secondary fixtures

  • Bidet, sink, bathtub (shown on drawings with small discharge points).
  • Each fixture drains into a drainpipe (secondary collector), which then connects to the main pipe.

Laundry room secondary fixtures

  • Laundry sink + drain(s).
  • Discharge goes to a floor/patio drain or directly into a collector that connects to the main pipe.

Kitchen secondary fixtures

  • Kitchen sink is a secondary fixture up to its trap/drain.
  • Once past the trap/drain outlet, it becomes part of the main system connection.

Special reference point: floor sink / patio drain

  • A key connection reference point is the floor sink / patio drain.
  • It includes a hydraulic water seal (trap concept) to prevent gas passage.

Key components and how they work (hydraulic seals, traps, patio/floor drains)

1) Drainpipe (secondary collector) and siphon/trap inside it

  • The secondary drainpipe connects secondary fixtures to the main pipe.
  • Inside the drain there is a siphon / hydraulic trap that:
    • prevents sewer gases from the primary system entering the building
    • works similarly to kitchen and toilet drains
  • The siphon is described as an elbow-like section submerged in the water level, with:
    • a plug and connection points for the inlet/outlets to the main connection.

2) Patio drain / floor drain (“floor sink”) with water seal

  • The floor/patio drain receives wastewater from secondary fixtures.
  • It contains an internal water level (water seal):
    • When a fixture is used, the water level rises, causing discharge to flow outward into the main pipe.
    • When water supply stops, the level returns to normal and stabilizes, maintaining a hydraulic seal against gas migration.

3) Patio drain construction features

  • Body: includes multiple inlet pipes (access points) that open when connected.
  • Outlet to main pipe: located after the trap.
  • Grate/extension neck: allows matching the drain to the subfloor height.
  • Open patio drain (PP-A) example:
    • collects not only fixture discharge, but also incidental water (e.g., splashes, room cleaning water).

Pipe diameters and design rationale (secondary vs. primary)

  • Secondary fixture discharge diameter: commonly 40 mm
    • chosen because these fixtures handle potable/clean water and generally no solids, so smaller pipes are sufficient.
  • Floor sink / patio drain outlet to main: often 63 mm
  • Primary branch connection examples indicate:
    • larger diameter transitions at the collector/outlet to the main system.

Connection rules and geometry (angles)

  • The video emphasizes that joint angles should be 45 degrees when changing direction/connecting sections.
  • Standard-like layouts mention the use of bends (e.g., 45-degree bends) in branch routing to main pipe connections.

Special case: Laundry room and washing machine drainage (siphon and height)

Washing machine drain height and siphon requirement

  • The washing machine drain must be placed at a height of 50–60 cm above the floor level.
    • Reason: washing machines do not rely on gravity; they discharge using pressure.
    • The height helps create a siphon effect that also helps block gas return.
  • A built-in accessory is used:
    • an additional siphon accessory at the connection point
    • a plug to access/unclog the drain connection.

Connection options for washing machine discharge

  • Option A (safer as described):
    • connect the washing machine drain hose to the patio/floor drain system, leveraging the existing trap/seal.
  • Option B:
    • connect it directly to the drain network, but ensure:
      • there is a siphon at the connector point
      • otherwise gases could pass into the premises.

House drainage system alternatives (how primary & secondary become “complete”)

  • One proposed house layout:
    • Main pipe from the main drain → inspection chamber → street
    • Kitchen sink connects to the secondary outlet area leading to the patio drain, and then to the main pipe
    • Laundry sink/washing system drains to the patio drain
  • The narration summarizes that secondary systems become part of the primary at the collector joints (shown by “red centers/lines” in the diagrams).

Primary system installation concepts: slab vs suspended piping

Types of vertical/horizontal discharge arrangements

  • Primary example:

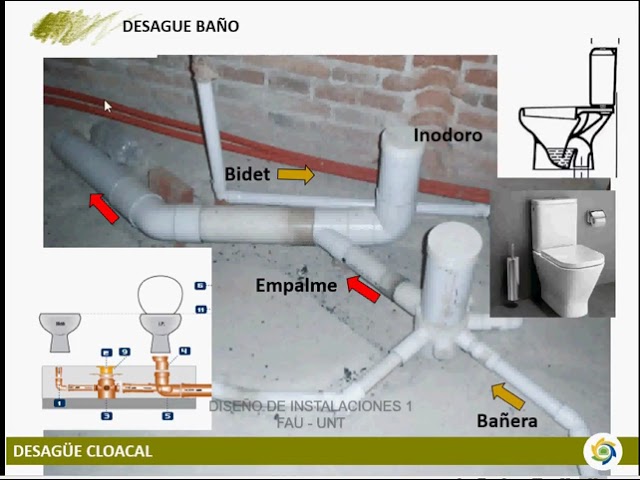

    • toilet connected to a vertical drain (toilet discharge directly into the vertical stack)
    • transitions to horizontal runs after reaching the floor/slab area via branching connections
  • Another variant:
    • a wall-based/less direct arrangement (horizontal discharge for certain toilet types) described as more complex

Suspended installations (upstairs bathroom)

Two alternative layouts:

  1. Completely suspended piping
    • secondary and primary drains suspended from the slab/ceiling structure
    • installation hidden after ceiling installation
  2. Mixed approach
    • secondary drains placed on slab
    • primary drains suspended from slab
    • result: smaller subfloor and smaller ceiling, with thickness distributed between them.

Planning considerations for installation coordination

  • Sanitary piping may share space with electrical installation in ceilings/slabs.
  • Planners must consider:
    • how piping will be positioned and supported
    • how it will be concealed
    • coordination with other trades/components.

Pipe slope methodology (design standards and calculation approach)

Why slope matters

  • Wastewater flows by gravity, so pipes must be inclined.
  • Slope must fall within standards to avoid:
    • too little slope: solids may settle/obstruct flow
    • too much slope: turbulence can also cause obstruction.

Recommended slope range (stated values)

  • Slope must be between 1:20 and 1:60.
  • Expressed as centimeters per meter:
    • 5 cm per meter (steeper end; corresponds to 1:20)
    • 16 cm per meter (shallower end; corresponds to 1:60)
  • The “one meter difference per 20 meters” idea is restated as part of the explanation.

How slope affects depths and layout

  • Once slope is selected, it determines:
    • the depth of components
    • the cover depth of the pipe
    • the elevation of connections at points such as the inspection chamber and fixture outlet.

Calculation methodology presented (two approaches)

Reference-plane method (cross-section-based calculation)

  1. Create a cross-section drawing showing components along the main pipe.
  2. Define a reference plane:
    • an ideal plane located 3 meters above sidewalk level
    • chosen to avoid issues from varying indoor floor heights (steps/uneven ground)
  3. Use distance along the pipe run:
    • example given: 8 meters
  4. Use slope equation relation:
    • slope relates vertical drop to horizontal distance.
  5. Determine/choose two depths:
    • depth to inspection chamber (example: 75 cm, generally between 0.80 and 1.20 m)
    • depth of covered pipe start/cover (example describes typically 40 cm if buried under conditions)
  6. Compute the resulting slope and verify it lies within the acceptable range.
  7. If needed, compute pipe cover depth by subtracting computed elevations from a baseline (example yields about 0.69 m cover depth).

“Fix the slope first, then solve depths” method (alternative workflow)

  1. Decide an acceptable intermediate slope (example mentions 13.3 in the explanation context).
  2. Use known values:
    • the slope
    • the inspection chamber depth (h2) derived from external sewer network depth
    • the distance to compute vertical differences
  3. Apply the equation logic:
    • one unknown depth depends on distance and slope plus inspection chamber depth.
  4. Solve for:
    • h1 (height/elevation of the higher point in the covered pipe run)
    • then compute cover depth by baseline subtraction (example described yielding 0.69 m).

Documentation requirement on plans

The installation drawing plan must indicate:

  • pipe material
  • pipe diameter
  • pipe slope

Slope must always be shown as an explicit plan datum.
