Inside WWII’s Most Important Codebreaking Operation

Scientific concepts, discoveries, and nature phenomena mentioned

Core cryptography / information theory (Enigma)

Enigma as a rotor-based cipher

• Uses three rotors with alphabet contacts; electrical current is routed through scrambled wiring.
• Includes a reflector that sends the signal back through the rotors via a different path.
• Output is displayed on a lamp board, mapping plaintext letters → ciphertext letters.

Polyalphabetic substitution (changing substitution rule)

• Unlike fixed ciphers (e.g., Caesar cipher or simple substitution), Enigma changes the letter substitution with every keystroke because the rotors rotate.

Rotor stepping mechanism

• The rightmost rotor advances every keypress.
• Additional rotors advance only when a turnover notch position is reached (a mechanical form of state transition).

---

Mechanical “key space” and combinatorics

Configuration sources of complexity

• Rotor ordering and initial window settings:
  • Rotor permutations (order) and window settings (initial rotor positions).
• Ring settings:
  • Rotating the ring relative to internal wiring alters both:
    • letter-to-letter mapping offsets, and
    • turnover timing.
• Plugboard (Steckerbrett):
  • Swaps pairs of letters before and after rotor passage, increasing complexity (“key space”).

Key space magnitude

• The episode states the combined effect yields over ~7 × 10^18 possibilities for the commercial/modified Enigma setup discussed.
• It says the space becomes much larger after further Nazi military upgrades.

---

Operational cryptanalysis (“codebreaking”)

Need for matching settings

• Decryption requires the receiver’s machine to be set exactly as the encrypting one; otherwise decryption fails.

Key sheets / daily keying

• German operators used prearranged daily settings so partners could decrypt messages.

Flaws exploited from operator behavior and protocol

• “Encrypting twice” weakness (early war):
  • Operators chose three random letters, encrypted them, and transmitted them twice.
  • This created a statistical/permutation relationship between key letters and repeats.
• Human non-randomness (“cillies” / predictable indicator letters):
  • Operators tended to choose non-random indicator letters (often names), enabling deductions of likely window settings.
• Herivel tip:
  • British analyst John Herivel noticed many operators shifted rotors by only small amounts from default settings.
  • This clustered initial indicator/window settings around particular letters, revealing likely ring settings.

---

Turing’s method for automated breaking: the “Bombe”

Cribs

• Cribbing guesses where meaningful plaintext likely appears (e.g., weather reports).
• A crib provides constraints used to test whether a hypothesized key setting makes the crib align without contradictions.

Constraint satisfaction via loops

• Turing used Enigma’s structure to find self-referential letter mappings (loops) under assumed rotor positions.
• If the hypothesized configuration is wrong, the loop structure becomes inconsistent, producing contradictions.

Plugboard handling trick

• Back-to-back plugboard mappings are treated as canceling, reducing the problem to:
  • rotor-loop constraints, plus
  • targeted plugboard inference.
• The Bombe uses electrical/circuit logic to rule out plugboard wiring candidates by forcing contradictions (impossible multiple mappings).

Diagonal board (Gordon Welchman’s improvement)

• Uses symmetry: if plugboard A↔B implies B↔A, the machine links related wiring guesses.
• Cuts down false positives drastically, leaving fewer candidate solutions to check.

---

Historical machine evolution affecting cryptanalytic strategy

Commercial Enigma vs. German military upgrades

• Nazi upgrades included revolvable rings, plugboard, and later changes such as:
  • different internal rotor wiring, and
  • additional rotors.
• Adding a fourth rotor forces new statistical/operational methods and new Bombe-like approaches.

Naval Enigma differences

• Greater complexity required revised methods and additional cooperation to obtain keying info (e.g., key sheets or cribs).

---

Nature phenomena explicitly mentioned

• Weather reports:
  • A common cryptanalytic crib is the content of German meteorological/weather messages (e.g., “weather report Biscay”).

---

Methodologies / workflows outlined

Bletchley Park overall process (as described)

• Intercept German radio messages (“listening stations”).
• Analyze traffic to find patterns/weaknesses.
• Guess likely Enigma settings.
• Use guessed settings on Enigma replicas to decrypt messages.

---

Early Enigma exploitation (Polish approach)

• Use the protocol where three indicator letters are encrypted twice.
• Exploit the resulting permutation relationships to reconstruct wiring.
• Reverse engineer replica Enigma machines.
• Reconstruct settings logic and begin reading traffic.

---

Indicator/setting inference improvements (British approach)

• Use “cillies” / predictable non-random choices to guess likely plaintext indicators.
• Apply Herivel tip to infer likely ring settings from clustered operator window choices.

---

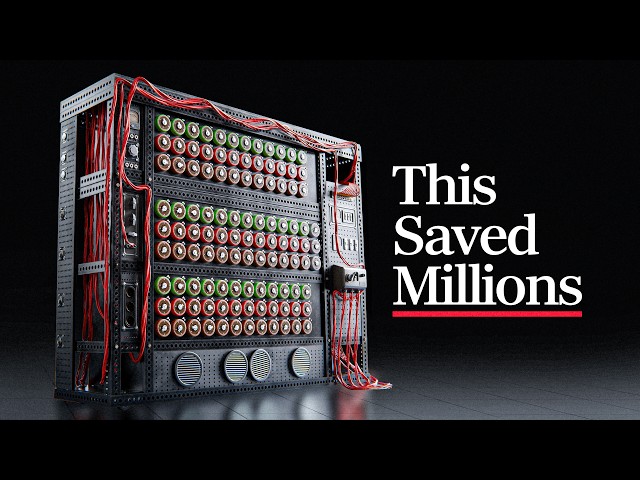

Turing Bombe logic flow (high-level)

• Choose a crib (guessed plaintext fragment like “weather report …”).
• Assume initial rotor positions/state for the start of the message (simplifying assumption).
• Test rotor configurations by searching for consistent mapping loops.
• Use plugboard constraints by ruling out impossible wiring via contradictions.
• Output candidate keys (indicator drums) for operators to verify.

---

Researchers / sources featured (as named in the subtitles)

• Benedict Cumberbatch (referenced in an Enigma context)
• Keira Knightley (referenced in an Enigma context)
• Arthur Scherbius (1918 Enigma patent)
• Alan Turing
• Sir Dermot Turing (referenced as Alan Turing’s nephew)
• Marian Rejewski (credited with recognizing the flaw and reconstructing wiring conceptually)
• John Herivel (Herivel tip)
• Jonah Weinbaum (associated with the “cribbing room” work)
• Gordon Welchman (diagonal board modification)
• Harold Keen (engineer who helped bring the Bomb/ideas to life)
• Bernard Montgomery (mentioned in connection with intelligence aiding El Alamein)
• Churchill (Winston Churchill; referenced in misinformation context)
• Roosevelt (Franklin D. Roosevelt; referenced in misinformation context)
• Adolf Hitler (referenced; also noted as using a different cipher system at the end)
• Jared Owen (3D Enigma model creator mentioned/credited)

Organizations (mentioned as groups rather than individual researchers):

• Germans
• Polish Cipher Bureau
• French intelligence
• British intelligence
• Royal Navy (Wrens)
