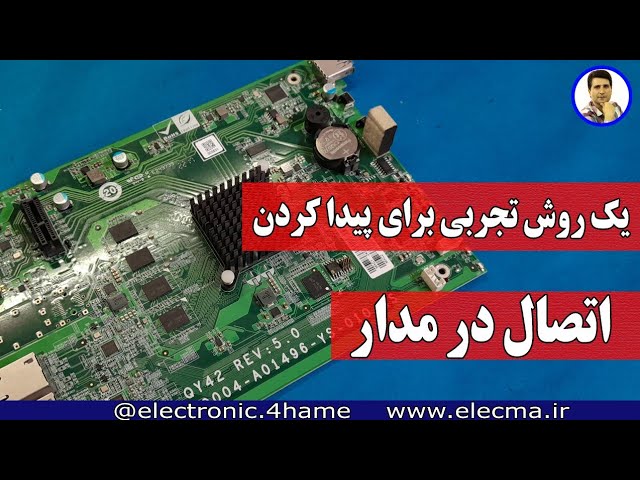

چطور مسیر اتصال روی برد را پیدا کنیم؟ با این روش!

Overview (what the video teaches)

The video presents a step-by-step method to locate an open/short or faulty connection on a PCB when the board draws too much current. The presenter uses a multimeter + power supply current limiting, then narrows the fault location by testing capacitors and continuity/impedance paths. Finally, they remove suspected components (rather than risky cutting) to confirm the fix.

---

Key technical steps / method

1. Power the board and identify abnormal current draw

• Locate a 12V input on the board.
• Power the board with a slightly reduced supply (e.g., ~11V) while limiting current.
• Connect positive and negative leads.
• Observe a current draw around ~200 mA, described as too much for the board.
• Turn off voltage to begin fault isolation.

2. Fault isolation via capacitor testing around CPU/RAM

• Since the CPU and regulators are in different parts of the board, the approach targets the RAM/CPU section first.
• The presenter tests capacitors near those chips by:
  • Probing the expected capacitor polarity states.
  • Listening for buzz/hum behavior when powered during tests—used as a sign that certain capacitors may be involved in the ripple/noise path.

3. Using a multimeter to find which network the problem is connected to

• The presenter treats specific capacitors as ripple/noise suppression/bypass capacitors.
• Typical assumption: each such capacitor has a defined positive/negative side (polarity).
• Procedure:
  • Select one side of a known capacitor with the correct polarity state.
  • Probe for continuity/impedance from that capacitor side into the circuit.
  • Identify regions where the readings indicate connection vs. not connected (examples mentioned include readings like ~120 Ω for “not connected” and ~78 Ω for “different section/relationship”).
• Outcome: the presenter narrows the approximate fault range where the problematic connection must be.

4. Best practice: remove components rather than cutting traces

• The presenter warns that in some circuits (especially cheaper/common designs), people may try cutting a section to see if a connection breaks.
• Instead, they recommend removing suspected components to avoid creating new noise or PCB issues.
• In this case:
  • They identify which path causes humming.
  • Remove an inductor (described as being in series in the fault path) rather than cutting the trace.
  • After removal, multimeter checks confirm the connection issue is corrected.
  • Power is reapplied and the issue is observed persisting on the “negative side.”

5. Confirming the final culprit component

• The presenter identifies a remaining damaged/burnt wire or faulted area after earlier attempts.
• The camera demonstration indicates a specific component still causes the circuit to draw current.
• Conclusion: replace that part to resolve the board’s excessive current draw.

---

What this is “most like” (tutorial/guide style)

• A diagnostic tutorial for PCB repair, using:
  • Power/current observations
  • Multimeter-based continuity/impedance localization
  • Component removal (capacitors/inductors) to confirm the fault
  • Buzz/hum listening as a clue for failing ripple/noise suppression stages

---
