LabCisco: Configuração de Roteamento Estático

Summary of “LabCisco: Configuração de Roteamento Estático”

This video lesson by Professor Samuel provides a detailed tutorial on configuring static routing on Cisco routers using a practical lab scenario (Lab 02). The focus is on understanding and implementing static routing to enable communication between multiple local networks and between a headquarters and a branch office connected via a point-to-point serial link.

---

Key Technological Concepts and Features Covered

1. Static Routing Basics

• Static routing involves manually configuring routes on routers.
• It contrasts with dynamic routing, where routers discover routes via protocols.
• Suitable for small to medium-sized networks.
• Advantages:
  • Better performance (less CPU and bandwidth usage).
  • Perceived higher security due to manual control.
• Disadvantages:
  • Manual configuration is error-prone.
  • Difficult to scale.
  • Requires reconfiguration after network changes.

2. Network Scenario Setup

• Headquarters (Router A): three subnets
  • 192.168.1.0/24
  • 192.168.2.0/24
  • 192.168.3.0/24
• Branch (Router B): two subnets
  • 192.168.8.0/24
  • 192.168.9.0/24
• A point-to-point serial link (192.168.0.248/30) connects Router A and Router B, simulating a WAN connection.
• Explanation of subnet masks, network addresses, broadcast addresses, and host IP assignment.
• Use of /30 subnet mask on point-to-point links for address economy and security.

3. Interface and IP Address Configuration

• Each router interface must have an IP address belonging to the directly connected subnet.
• Gateways for hosts are the router interfaces with the highest valid IP in the subnet (e.g., .254).
• Interfaces on Cisco routers are administratively down by default and must be enabled using the no shutdown command.
• Importance of careful IP assignment to avoid errors that break connectivity.

4. Router Knowledge of Networks

• Routers automatically know networks directly connected to their interfaces.
• Networks unknown to a router must be added manually via static routes.
• Routing tables show directly connected routes (marked C) and static routes (marked S).

5. Static Routing Configuration Process

• Two-step approach:
  1. Identify networks directly connected to each router.
  2. Identify unknown networks and manually add static routes pointing to the next-hop IP (neighboring router interface).
• Use of organized tables to map interfaces, networks, and IP addresses before configuration to avoid mistakes.
• Commands used:
  • show ip interface brief — check interface status and IPs.
  • show ip route — view routing table.
  • ip route [network] [mask] [next-hop IP] — add static routes.
  • clock rate on serial interface for synchronization on one router side.

6. Testing and Verification

• Ping tests between hosts in the same subnet (Layer 2) and across subnets (Layer 3 routing).
• Use of tracert to verify the path packets take through the network.
• Explanation of ICMP messages like “host unreachable” when routes are missing.
• Importance of comparing routing tables on all routers to ensure full network reachability.

7. Additional Concepts

• Administrative distance and metric cost (briefly introduced; to be detailed in future lessons on dynamic routing).
• Router’s behavior in choosing routes when multiple routes exist.
• Differences between Cisco IOS routing behavior and Linux routing.

---

Product Features / Tools Used

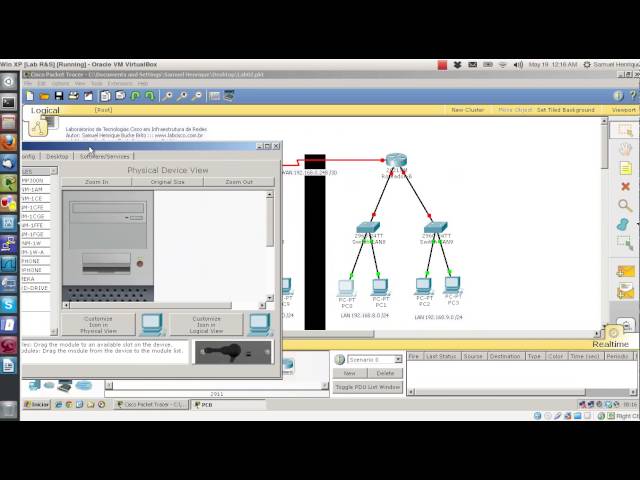

• Cisco routers simulated via Cisco Packet Tracer.
• CLI commands for router configuration.
• Visualization of packet flow and routing decisions in Packet Tracer.
• Use of tables to organize network and routing information prior to configuration.

---

Guides / Tutorials Provided

• Step-by-step IP and interface configuration on routers.
• How to enable and verify interface status.
• How to manually add static routes and verify routing tables.
• Best practices for avoiding configuration errors (importance of planning and organization).
• Explanation of routing concepts with practical examples and real-world analogies.

---

Main Speaker / Source

• Professor Samuel (Instructor and presenter of the lesson).

---

Conclusion

This video is a comprehensive tutorial on static routing configuration in Cisco routers, emphasizing preparation, careful planning, and verification. It prepares viewers for more advanced topics like dynamic routing protocols to be covered in subsequent lessons.
