Video summary

2026 2학기 물리이론반 1-1 평형과 안정성 이론영상 p15~27

Main summary

Key takeaways

Educational

Main ideas / lessons

1) From force equilibrium to rotational equilibrium

  • Previously, the video covered force equilibrium:
    • (\sum F = 0) (net force is zero) so the object does not accelerate.
    • For symmetric situations (e.g., equal forces left/right or top/bottom), forces cancel.
  • Now it extends to objects that can rotate because they have size and forces can be applied at different points.

2) When equal opposite forces still cause rotation

  • Even if two opposite forces are equal in magnitude and “cancel” in net force ((\sum F=0)), rotation can occur if they act at different positions relative to the rotation axis.
  • Example concept:
    • Forces applied to opposite ends of a disk/rod can produce torques that cause clockwise rotation (depending on geometry).

3) Definition of torque and torque equilibrium

  • The video introduces torque (rotational effect of a force).
  • Rotational equilibrium condition:
    • (\sum \tau = 0) → torques clockwise and counterclockwise balance → no net rotation.
  • Key qualitative definition:
    • Torque depends on:
      • Force magnitude (F)
      • Lever arm (r): perpendicular distance from the axis to the line of action of the force
      • (In general) only the component perpendicular to the lever arm creates torque.

4) Lever-arm dependence: why door handles are far from hinges

  • If the same force is applied:
    • Smaller lever arm → smaller torque → harder to rotate
    • Larger lever arm → larger torque → easier rotation
  • Practical examples: door handles, wrenches, tools.

5) Computing torque direction and magnitude

  • Direction rule:
    • Torque direction is determined by whether the force tends to rotate the object clockwise or counterclockwise about the chosen axis.
  • Magnitude rule emphasized repeatedly:
    • (\tau \propto F \times r)
  • Special case emphasized:
    • If a force is applied parallel to the radius vector (i.e., its line of action is aligned with the axis-to-point segment), it can produce zero torque because the perpendicular lever arm is zero.

6) Choosing the axis to simplify torque calculations

  • “Method skill”:
    • When calculating torque equilibrium, choose an axis.
    • A force applied at the axis produces zero torque (because (r=0)), so it can be ignored in the torque sum.
  • This is used to reduce unknown-force terms.

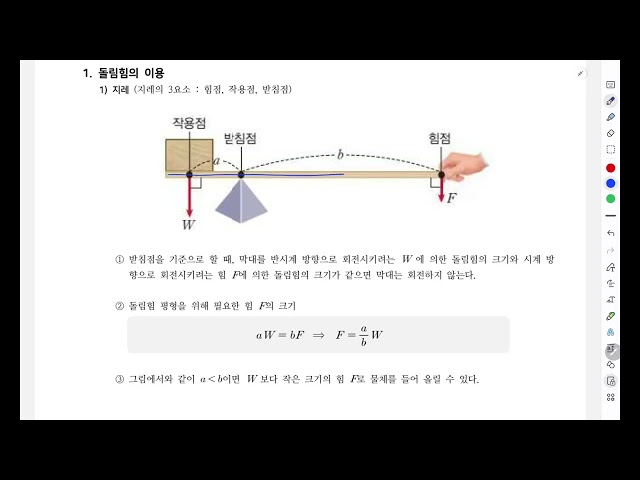

7) Seesaw / fulcrum stability and required force-distance balance

  • Example of equilibrium on a seesaw:
    • If one side is heavier, the other must compensate via force-distance (torque) balance.
    • Condition described:
      • Torque from side A + torque from side B must cancel (equal magnitude, opposite direction).
  • Proportional reasoning:
    • If forces are in ratio (F_A:F_B), then lever arms must be in the inverse ratio to balance.

8) “Center of mass / center of gravity” as the torque-neutral location

  • The center of mass (COM) is described as the point such that if you support the system there (as a pivot/axis), the net torque due to gravity becomes zero.
  • For single-support cases:
    • The support must be located at the COM; otherwise the object tips.
  • For two supports:
    • Stability requires COM to lie between the supports.
    • If COM shifts outside the supports’ span → collapse (tipping) occurs toward the side with less support.

9) Center-of-mass shift when a person/weight moves

  • When one mass moves, COM moves accordingly.
  • Approach described:
    • After movement, re-evaluate the torque balance using the new COM position.
    • Collapse occurs when the shifted COM passes the boundary (e.g., directly above one support).
  • A proportional idea appears:
    • COM shift depends on the moved mass fraction of the total mass.

10) Multi-force / multi-physics examples solved using equilibrium

The latter part repeatedly applies:

  • (\sum F = 0) (vertical force balance)
  • (\sum \tau = 0) (torque balance about a chosen axis)
  • COM and lever-arm reasoning

Used to solve numerical problems about:

  • rods with masses at distances from fulcrums,
  • doors and hinges,
  • pulleys / axles and tensions,
  • hanging masses via strings with different lever arms,
  • stability thresholds for tipping.

Method / instruction-style content (detailed bullets)

A) Steps for static equilibrium of a rotating object

  • Step 1: Choose a coordinate/axis of rotation
    • Pick the rotation axis about which you will compute torque.
    • Advantage: if a force acts through the chosen axis, its torque is zero.
  • Step 2: Write force equilibrium (if applicable)
    • Use vertical/horizontal components as needed:
      • (\sum F = 0)
    • Commonly: upward support forces (or tensions) equal total downward weights.
  • Step 3: Write torque equilibrium
    • Compute torques from each force about the chosen axis:
      • (\sum \tau = 0)
    • For each torque:
      • determine direction (clockwise/counterclockwise),
      • compute lever arm (r) = perpendicular distance from axis to force line of action,
      • use (\tau = F \cdot r) (with the correct perpendicular-component concept).
  • Step 4: Set up proportional/inverse relationships if symmetry or multiple equal forces are given
    • If (\tau_A=\tau_B):
      • (F_A r_A = F_B r_B)
    • So if (F_A/F_B) is known, then (r_A/r_B) is the inverse ratio.

B) Rules for “when torque is zero”

Torque is zero if:

  • the force is applied at the axis ((r=0)),
  • or the force is parallel to the radius/line from axis to point (perpendicular lever arm is zero).

C) Stability rules using COM (center of mass)

  • Single support (one fulcrum/string contact):
    • Support point must coincide with COM for (\sum \tau = 0).
    • Otherwise the object tips.
  • Two supports:
    • COM must lie between the two support points to remain stable.
    • If COM moves beyond either support:
      • torque no longer balances,
      • the system collapses toward that side.

D) Center-of-mass shift logic when one part moves

  • When a mass moves by distance (x):
    • the COM shifts by an amount proportional to that mass relative to total mass.
  • Collapse boundary occurs when COM reaches the support-line limit (edge of stability region).

Speakers / sources featured

  • No specific named speakers are clearly identifiable from the subtitles (the narration appears to be one instructor/teacher).
  • Primary source: the video titled “2026 2학기 물리이론반 1-1 평형과 안정성 이론영상 p15~27” with an unnamed instructor narrator.
