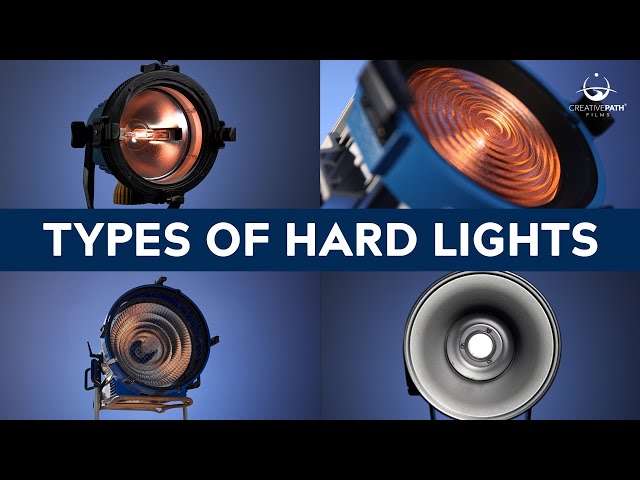

Types of Hard Lights - Fresnel vs Par vs Open Face Lights | Film Lighting Techniques

Main summary

Key takeaways

Educational

Main ideas and lessons

  • The video explains how different hard light fixtures work and how their design affects:

    • Shadow sharpness/quality
    • Beam direction and spread
    • Light intensity and efficiency
    • Best use cases (e.g., faces/portraits, background coverage, pattern projection)

  • It compares three major hard-light types:

    1. Open-face lights
    2. Par (parabolic reflector) lights
    3. Fresnel lights (optical lens-based)

  • Core concept: Hard light produces sharp, defined shadows because it behaves like a small point source. The farther that source is from the subject, the “harder” the light becomes.

Methodology / instructional content (as presented)

How the video defines hard lights (functional principles)

  • A hard light creates sharp, defined shadows relative to the subject’s size.
  • It uses a small point source, such as:
    • a small bulb, or
    • an LED chip
  • The fixture controls output and direction using:
    • a reflector dish (to funnel light outward in one direction)
    • and/or a lens element (to control directionality/spread)

Detailed comparison of fixture types

1) Open-face lights (simplest/cheapest hard light)

Design / beam behavior

  • Uses reflector dishes only (no front lens).
  • Typically has a wide beam angle.
  • Reflector quality is generally described as average, often:
    • textured and spherical rather than parabolic
    • producing less even beam quality
    • causing falloff in intensity toward the edges
  • Shadow quality is often softer-ish / average, and may include multiple shadows due to reflections bouncing inside the reflector.

Controls

  • Commonly includes flood/spot functionality:
    • moving the reflector dish closer/farther from the bulb
    • narrowing/widening the beam angle
  • Often includes barn doors to control spill.

Best uses

  • Least expensive, providing a lot of output for the cost.
  • Good for:
    • filling large diffusers
    • lighting large areas
    • bouncing off other surfaces to create large soft sources
    • backlights or background lights needing broad coverage
  • Not ideal for:
    • pointing directly onto faces when you need crisp, controlled hard shadows
    • shooting through gobos/cucolorus when you need sharp, crisp cut patterns.

Examples mentioned

  • Redheads
  • Ayrton lights (spelled “Airy lights” in subtitles; likely referring to an “Arri/Ayrton”-style naming context)
  • Notes that some standard reflector dishes for COB-style LED setups can fall into this category (varies by reflector).

2) Par (parabolic reflector) lights

Design / beam behavior

  • Uses a parabolic reflector shape (parabolic U-shape), not spherical.
  • The reflector is described as polished/mirror-like.
  • Focusing concept:
    • With the bulb at the focusing position within the dish, it produces collimated parallel beams and an even beam spread.
    • When moved out of the ideal position (defocused), rays scatter more:
      • broader beam
      • less even
      • softer shadows

Examples mentioned

  • PAR64 and PAR56
  • Some HMI fixtures using par reflectors, including “Aries Suns” (as spoken in subtitles)
  • Cinepar fixtures from multiple manufacturers
  • Notes that fabric reflectors in parabolic softboxes use similar principles to spread light evenly across the softbox surface.
    • Mentions convex lenses in the softbox context.

3) Fresnel lights (lens-based hard light)

Design / beam behavior

  • Uses a lens in front of the light source (optical lens-based control).

  • The video explains lens fundamentals:

    • Convex lens: captures scattered rays from a focal point and collimates them into an even directional beam (similar result in principle to par reflectors, but via lens transmission).

  • Problem with convex lenses:

    • require lots of glass/plastic
    • reduce light efficiency
    • trap excess heat, shortening lifespan

  • Fresnel solution:

    • invented by French physicist Augustine Jean Fresnel for lighthouse lenses
    • constructed by dividing a convex lens’s curved front into many smaller segments
    • arranged into a thinner lens with concentric rings of different depths/angles of curvature
    • achieves almost identical optical performance to a convex lens but is:
      • lighter
      • cooler
      • more efficient

Controls

  • Like other types, fresnels can be focused/defocused using flood/spot controls.

Performance claims

  • Fresnels are described as:
    • optically superior
    • producing the sharpest shadows
    • with the most even beam spread
  • Also best for “cutting/shaping” with patterns such as:
    • cucolorus / cutters
  • Some fixtures can achieve tight angles as low as ~8 degrees with minimal spill.

Tradeoffs

  • Won’t flood as wide as par or open-face lights.
  • Has the lowest output per watt among the three, since the light must pass through an extra lens element.
  • Fresnels exist in:
    • tungsten
    • HMI
  • Also mentions Fresnel attachments for common LED brands (example brands given in subtitles):
    • Aputure
    • Nan light (as spoken)

Practical “which should I choose?” decision guidance (summarized)

  • Choose Open-face lights if you want:

    • good output at low cost
    • simple jobs like illuminating large diffusers or lighting large areas

  • Choose Fresnel if you need:

    • sharper, more defined hard shadows for portraits
    • precision highlighting/pinpointing within the frame
    • tight control for patterns/cutters

  • Choose Par if you want:

    • an all-round option between the other types
    • tons of output

Speakers / sources featured (as stated or clearly identifiable)

  • Primary speaker/creator: Unnamed YouTube presenter (the narrator throughout)
  • Historical source mentioned: Augustine Jean Fresnel (French physicist credited with designing fresnel lenses)
