3D Printing Filament Drying Cabinet

Overview

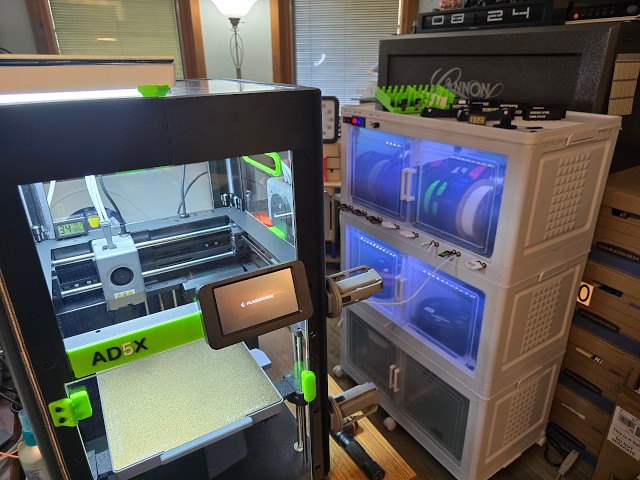

A hobbyist built a 3‑tier actively dehumidified filament drying and storage cabinet to combat high humidity (Florida). The build uses a commercially sold three‑tier cabinet shell (~USD 129 on Amazon) but is heavily modified with active dehumidification, heating, controls and custom printed fittings.

Key features and construction

• Cabinet capacity
  • Configured to hold up to ~40 × 1 kg spools (front‑access ports). 4‑ and 5‑tier versions are available from the same product line.
• Active dehumidifier
  • Converted countertop ice maker (sourced cheaply from Goodwill) provides the cold surface/compressor and condensate pump.
  • A collector tube drains condensate out of the cabinet; about 200 mL of water was collected in one week of use.
• Heating
  • Heating pads installed under the top level and in the “basement” to keep filament warm while drying.
• Controls
  • Custom controls allow setting lights, temperature range, humidity setpoints, and fan speed.
  • Example control settings used: humidity ON at 15% RH / OFF at 20% RH; temperature ON at 35 °C / OFF at 40 °C.
• Filament feed and routing
  • Filament exits through front (and back) ports.
  • Uses Bowden tube extensions and printed guides to simplify insertion and prevent tension.
  • Fully retracting filament lines through the port requires opening the cabinet (manual).
• Mechanical mounts and spool handling
  • Spool rails built on 2020 aluminum extrusion; rails are adjustable by sliding and locking with two screws to accommodate different spool widths.
• Organization aids
  • Printed spacers keyed to spool diameters (1 mm increments shown).
  • Printed tag‑tray system with color‑coded tags and per‑printer slots to track which spool feeds which printer.

Performance and analysis

• Ice maker as dehumidifier
  • Using an ice maker is advantageous because it produces a very cold condensation surface, allowing the cabinet to reach much lower relative humidity (target ~10–15% RH). Typical consumer dehumidifiers often cannot reach such low RH because their condenser temperatures limit dew point capture.
• Practical results
  • Measurable condensate was collected during initial operation; condensate volume decreased as spools dried.
• Energy and noise tradeoffs
  • Active dehumidification and heating increase electricity consumption.
  • The fan can be noisy; fan speed control is included to balance noise vs. airflow.
• Temperature caution
  • The builder kept temperatures modest (35–40 °C) because higher sustained temperatures can damage some filaments over time.

Usability notes and limitations

• To fully retract filament lines you must open the cabinet.
• Fan noise and additional electricity use are tradeoffs for active drying.
• Some elements (converting an ice maker, custom printed guides/spacers, wiring and controls) require basic DIY and 3D‑printing skills.

Guides, community and support

• The builder references a helpful video from the Next Layer YouTube channel and thanks the broader 3D‑printing YouTube community for guidance.
• The builder offers to help others with instructions on converting an ice maker to a dehumidifier and on their specific modifications (implied DIY tutorial potential).

Sources and main speakers

• Primary speaker: the video uploader/builder — a self‑described retired aerospace engineer, new to 3D printing (first printer received in December; a Snapmaker received in March).
• Referenced source: The Next Layer (YouTube channel).
• Hardware sources mentioned: three‑tier cabinet (Amazon) and the converted ice maker (Goodwill).
