1.2.5 Clock Signals (no music)

Video Summary

The video discusses clock signals, focusing specifically on the 555 Timer, a versatile Integrated Circuit used for generating accurate time delays and oscillators. Key concepts covered include:

• 555 Timer Overview:
  • An 8-pin Integrated Circuit capable of producing time delays and oscillators.
  • It can be configured for various applications, including counters and random number generators.
• Mathematical Derivations:
  • The video includes derivations for the charging and discharging equations of capacitors used in conjunction with the 555 Timer.
  • Important equations presented include those for the period, Frequency, and Duty Cycle of the timer.
• Charging and Discharging Cycles:
  • The charging cycle involves the capacitor charging through two resistors, while the discharging cycle involves the capacitor discharging through one resistor.
  • The video explains how the voltage across the capacitor changes during these cycles and how it can be visualized on an Oscilloscope.
• Key Equations:
  • Charging Equation: V_C = V_f - V_i × (1 - e^{-T/RC}) + V_i
  • Discharging Equation: V_C = V_i - V_f × e^{-T/RC}
  • Period, Frequency, and Duty Cycle calculations are derived from these equations.
• Example Calculations:
  • An example demonstrates how to calculate the period, Frequency, and Duty Cycle using specific resistor and capacitor values.
  • The video also covers how to determine resistor values needed to achieve a desired Frequency and Duty Cycle.
• Oscilloscope Visualization:
  • The behavior of the capacitor during charging and discharging is illustrated using Oscilloscope readings, showing the logic high and low states.
• Derivation of Formulas:

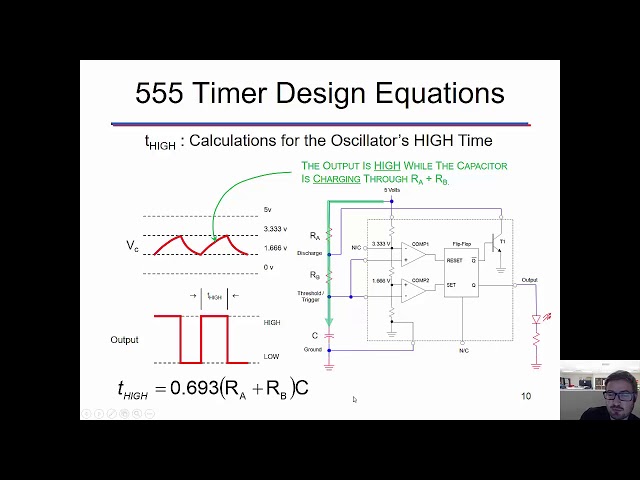

  • The video explains the derivation of key formulas used in calculating the time high, time low, and total period of the 555 Timer.

Main Speakers/Sources

• The speaker is an instructor addressing students, providing detailed explanations and calculations related to the 555 Timer and its functionalities.
